High Strength 3D Concealed Hinges For Folding Door / Swing Door 40mm

Brand Name : JKL

Model Number : BG003

Certification : SGS,CNAS

Place of Origin : Jiangmen, Guangdong

MOQ : Negotiation

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 10,000 pcs/month

Delivery Time : 15 days.(A small amount of stock all the time)

Packaging Details : 1 pc/poly bag, 1 pc/inner white box, 40 pcs/carton

Main Usage : Wooden Door, Metal Door, Folding Door, Swing door, Heavy Duty Door

Advantages : Adjustable without disassemblying door leaves,Drilling to be invisible installation,Concealed for a complete flush look, Top range quality, high sensory, durable and silent

Weight loading : 60 kgs/3 pcs

Material : Zinc alloy

Surface Finish : Pearl Chrome

Open degree : 180°

Adjustment range : up&down±1.5mm, left&right: ±1.0mm, front&back:±1.0mm.

Min door thickness : 40mm

Max door width : 1000mm

Door higher than 2100mm : Suggest to fix 4 hinges

Contact Now

High Strength 3D Concealed Hinges For Folding Door / Swing Door 40mm

3D Concealed Hinges Introduction

When closed, hinges cannot be seen or tampered with - when open, riveted pins cannot be removed (hinge opens to 180°).
High-strength Stainless steel and heavy-duty zinc alloy castings.
Choose from Satin Chrome (US26D) Satin Brass (US4), Satin Nickel, Antique Brass, Antique copper finishes in a number of sizes.
To install, mortise out wood door and jamb using a drill bit and clean up with a chisel (paper template, instructions and mounting screws included).
Smaller hinges sold in carded pairs; 2-3/4 and larger hinges sold each.
For faster and more accurate hinge installation, the optional Router Guide Template ensures a perfect mortise:
Individually handcrafted template fastens to door and jamb with nails - guide pins locate the deep mortise.
Router, router bit and 3/4" O.D. guide bushing with lock nut required (not included).

3D Concealed Hinges Features:

Size(Width x Height):	30*110mm
Material:	Zinc alloy
Adjustment range	up&down±1.5mm, left&right: ±1.0mm, front&back:±1.0mm.
Popular surface finishes:	Pearl Chrome / SS Arms / Satin Chrome / Satin Brass / Chrome Painted/ Gold Painted.
Main usage:	Wooden door, Metal door, Folding door, Concealed door, Interior door etc
Weight loading:	60kgs/3pcs.
Distinguishing for left or right:	No.
Min door thickness:	40mm
Open&Close:	100,000
Service life:	＞5 years
Advantages:	Adjustable without disassemblying door leaves,Drilling to be invisible installation,Concealed for a complete flush look,high quality, high sensory, durable and silent

Invisible, but not unsightly.

Our 3D Adjustable Concealed hinge has been going from being a welcome technologically superior substitute for other "invisible" hinges when the odd concealed door was detailed, to one that is being throughout a project's interior and exterior doors. This acceptance has grown from a realization by contractor, millworker and architect alike of the significant cost savings that an adjustable hinge can bring to the project.

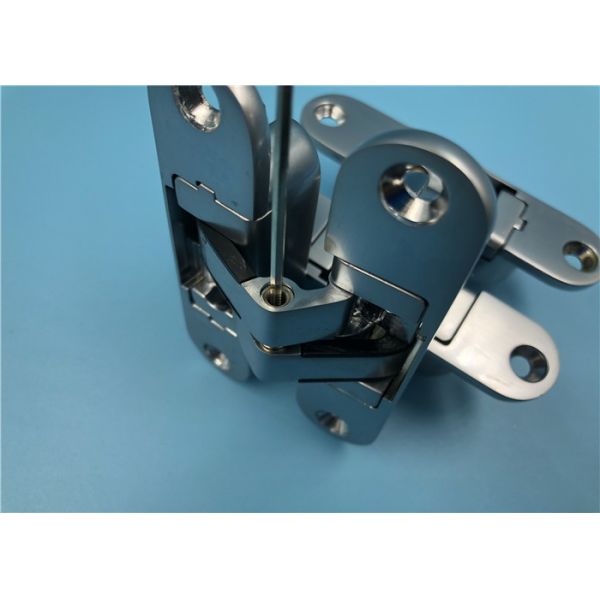

3D Concealed Hinges details

High Strength 3D Concealed Hinges For Folding Door / Swing Door 40mm
